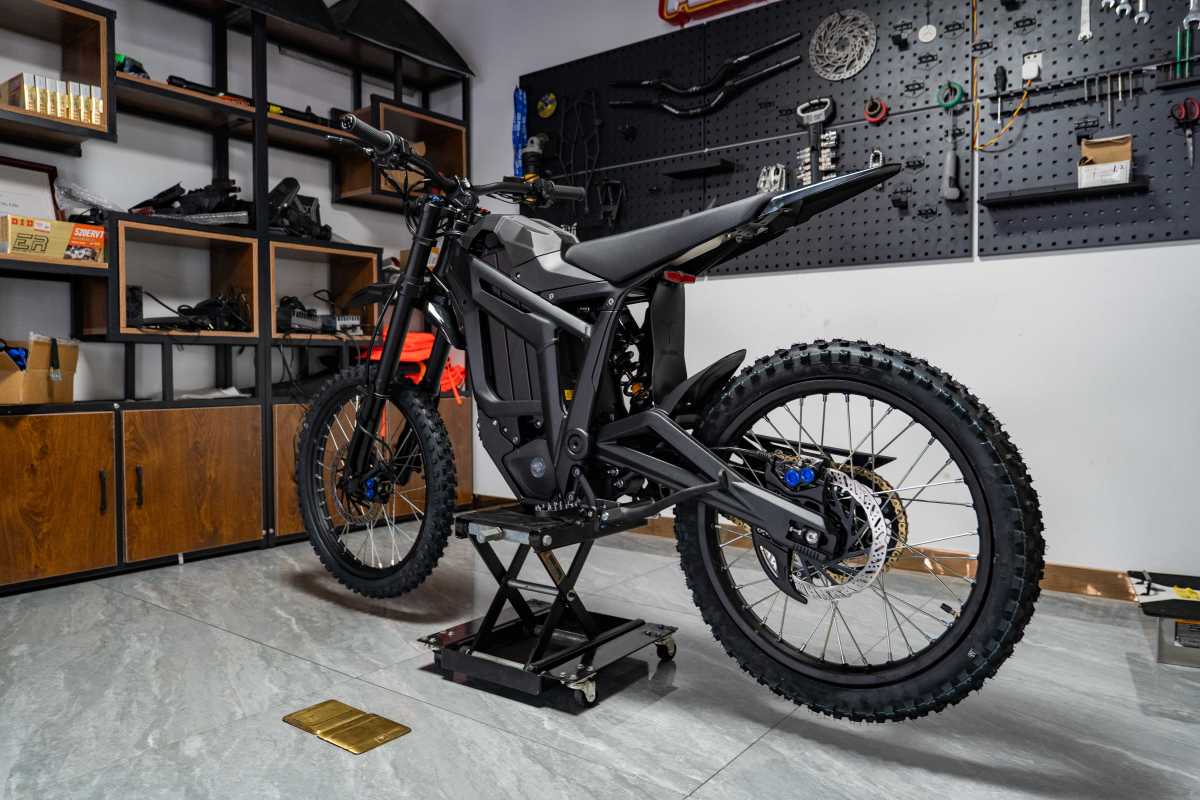

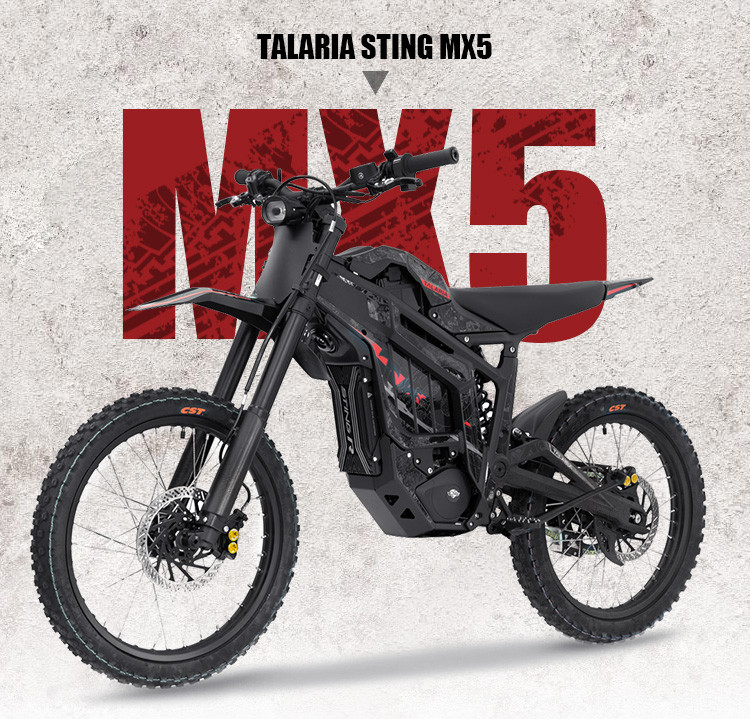

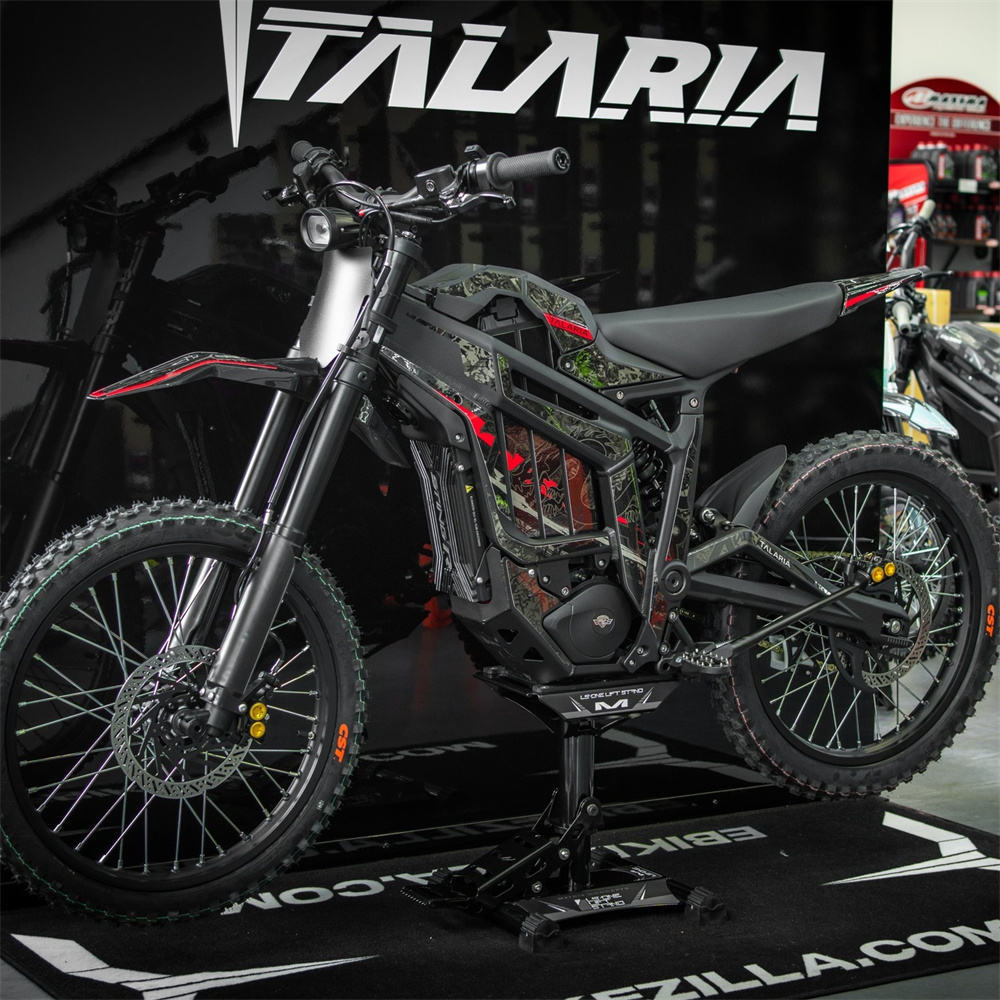

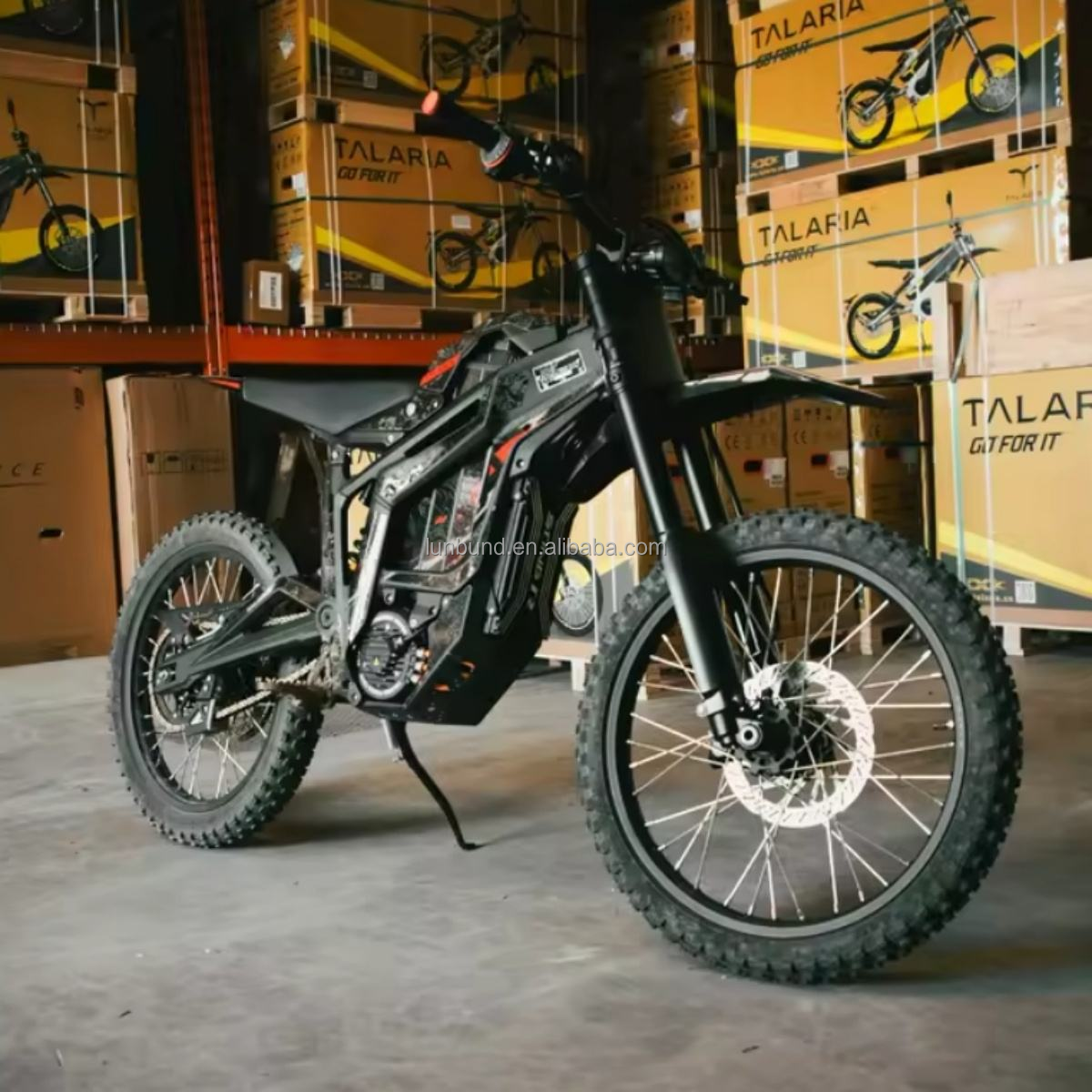

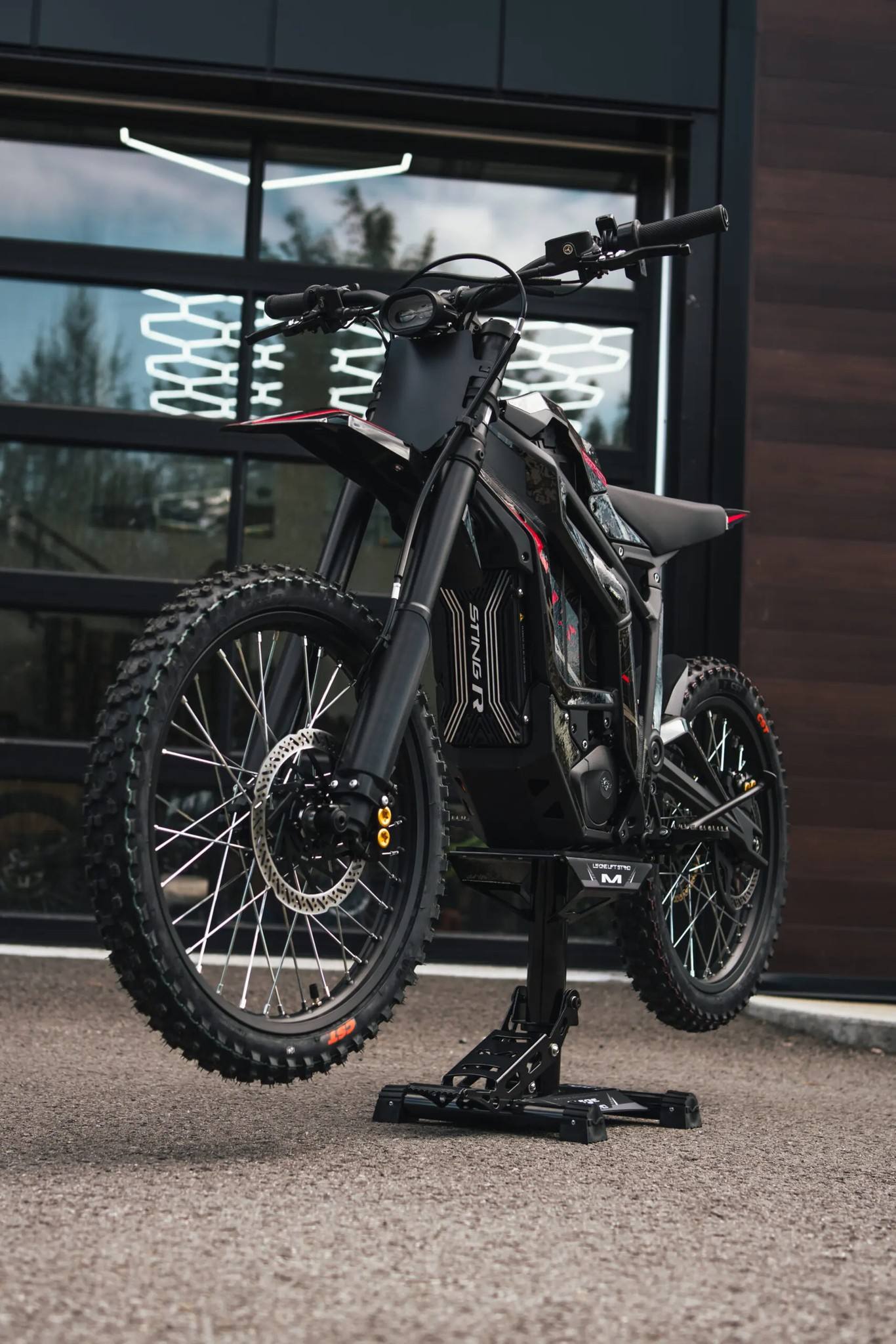

72V 40Ah Talaria MX5 Pro Electric Dirt Bike 13.4kW 500Nm Forged Alloy Frame Dirt Ebike Pit Bike for Adult

13.4kW OF INSTANT POWER
The 72V powertrain delivers hard-hitting acceleration and up to 500 N·m of rear-wheel torque—ready for steep climbs, loose dirt, and wide-open trails.
BUILT TO RIDE HARD
Adjustable suspension, four-piston hydraulic brakes, and a forged aluminum frame give you the control and confidence to push harder off-road.
MORE TRAIL. LESS DOWNTIME.
A removable 72V 40Ah Samsung battery delivers dependable range, while Eco, Sport, and Hyper modes let you dial in the ride.

72V 40Ah

Battery

13.4 kW

Peak Power

MAX SPEED

Up to 75 Miles (120 km)

RANGE

Charging time

74 × 30.3 × 42.8 in

Outer Box Dimensions

Product Parameters

Brand	TALARIA
Model	Sting MX5 Pro
Product Type	High-Performance Electric Dirt Bike
Product Dimensions	74 × 30.3 × 42.8 in (1880 × 770 × 1088 mm)
Wheelbase	49.2 in (1250 mm)
Seat Height	33.1 in (840 mm)
Handlebar Width	29.9 in (760 mm)
Ground Clearance	11.8 in (300 mm)
Net Weight	165 lbs (74 kg), Battery Included
Maximum Load	220 lbs (100 kg)
Nominal Voltage	72V DC
Rated Power	5.5 kW (Unrestricted)
Peak Power	13.4 kW (Unrestricted)

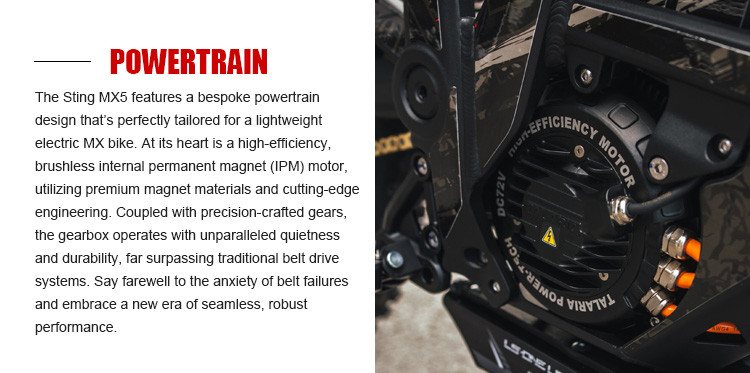

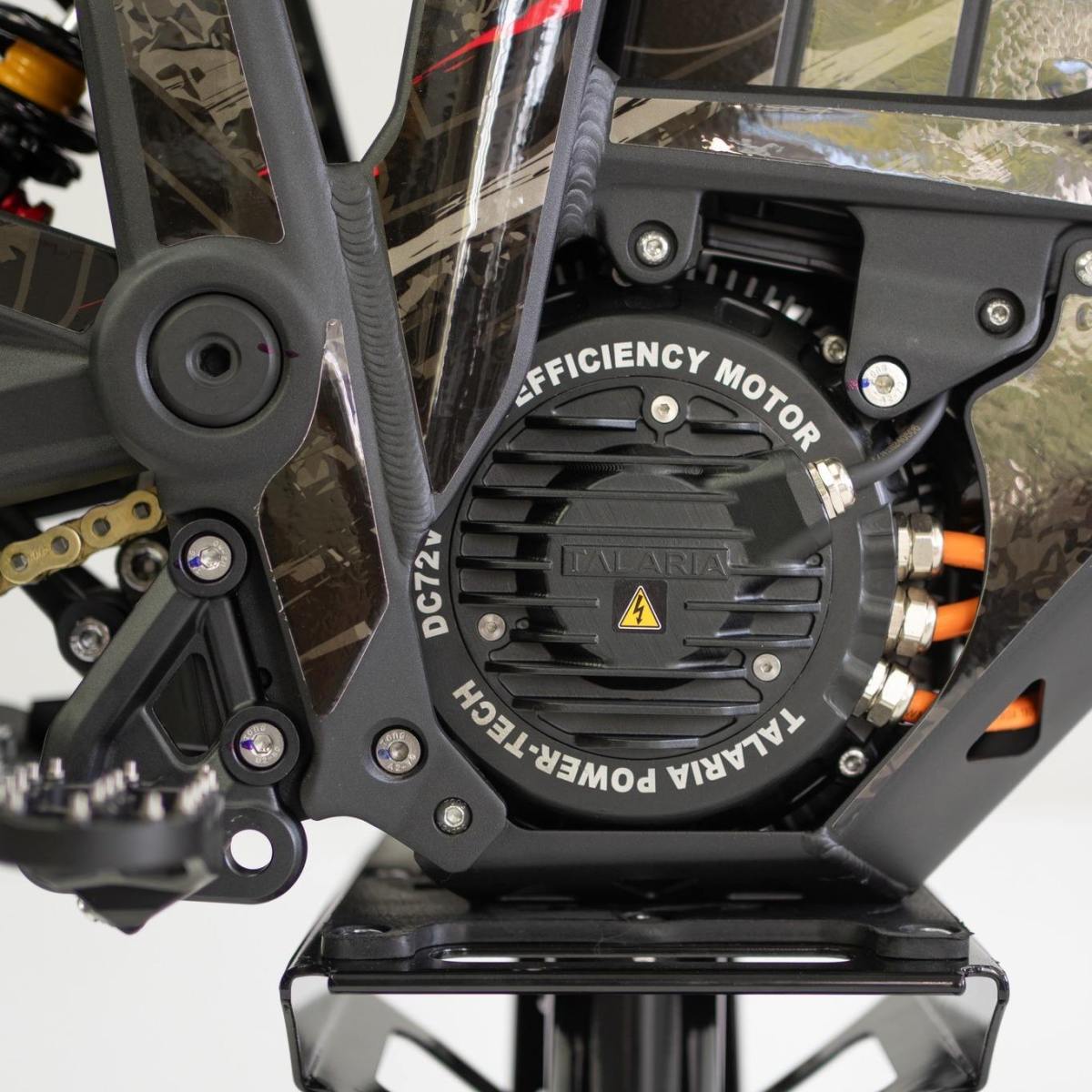

Motor Type	DC IPM Motor
Motor Position	Mid-Mounted
Motor Cooling	Air-Cooled
Maximum Rear-Wheel Torque	500 N·m (368.8 ft-lbs)
Maximum Speed	Factory Limited to 20 mph (32 km/h)
Maximum Gradeability	45°

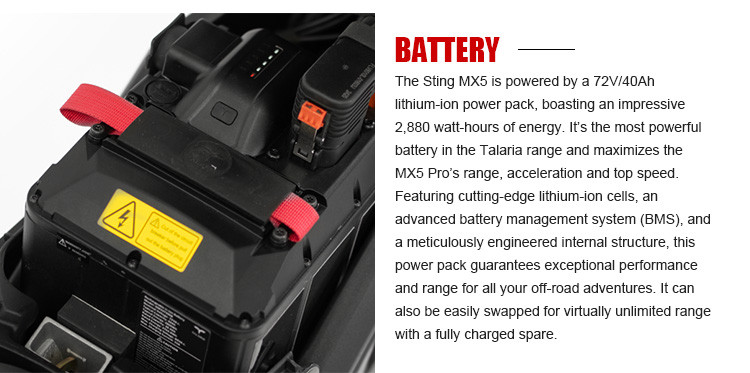

Battery	72V 40Ah Lithium-ion Battery
Battery Energy	2880Wh (2.88 kWh)
Battery Cells	Samsung 50S 21700 Cells
Removable Battery	Yes
Maximum Range	Up to 75 Miles (120 km) at 15 mph (25 km/h)
Riding Modes	Eco / Sport / Hyper
Primary Transmission	Reinforced Gearbox

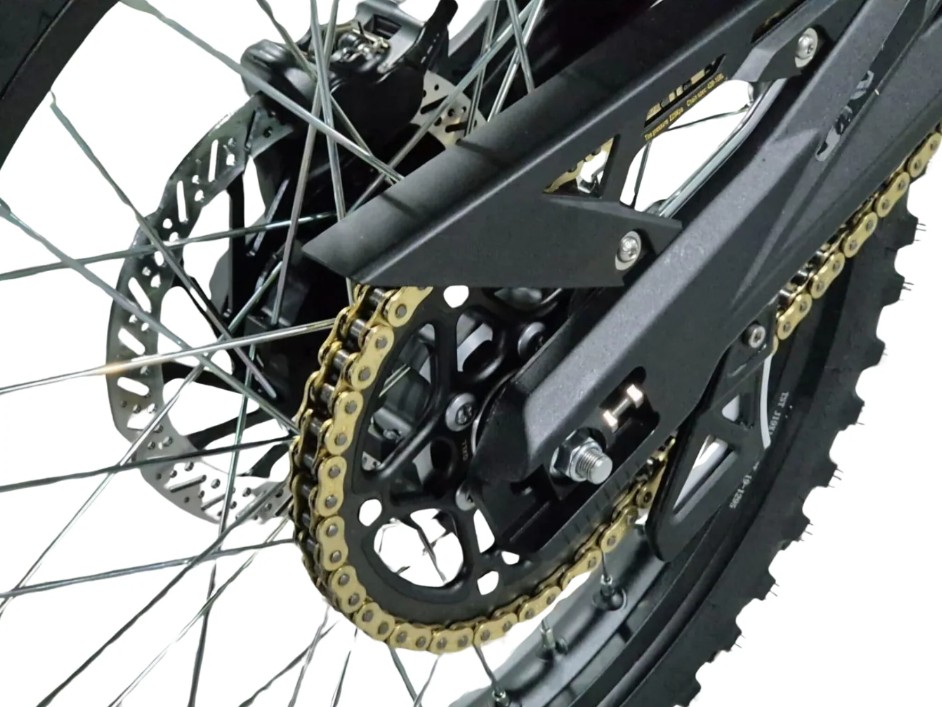

Secondary Transmission	428-108T Chain
Rear Sprocket	48T
Frame Material	6061 T4 & T6 Aluminum Alloy
Frame Manufacturing	Forged Under 6,000 Tons of Pressure
Surface Treatment	Anodized Finish

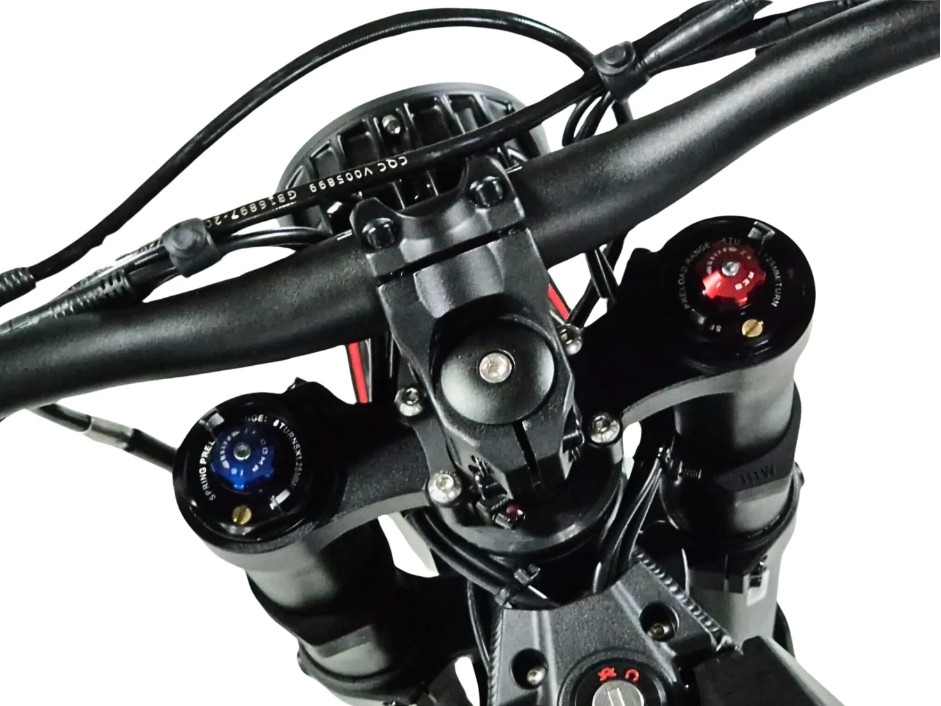

Front Suspension	Adjustable Air and Spring Fork
Front Fork Travel	8.66 in (220 mm)
Rear Suspension	Adjustable Linkage Rear Shock
Rear Shock Travel	3.35 in (85 mm)
Front Wheel Size	1.4 × 19 in
Rear Wheel Size	1.6 × 19 in
Front Tire	70/100-19 Off-Road
Rear Tire	80/100-19 Off-Road

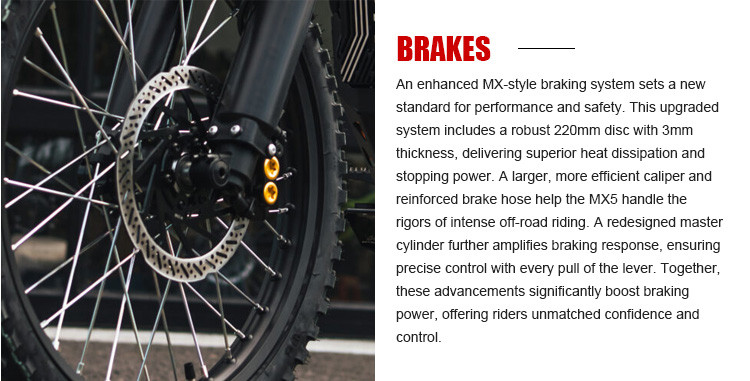

Brake System	Front and Rear 4-Piston Hydraulic Disc Brakes
Brake Discs	Front and Rear 220 × 3 mm
Regenerative Braking	4-Level Adjustable Regen + Dedicated Regen Lever
Dashboard	Color TFT Multi-Function Display
Display Information	Speed, Battery Level, Voltage and Odometer
Lighting	LED Headlight and Taillight with On/Off Switch
Recommended Use	Off-Road, Trail Riding and Enduro Use
